CASPULE — Setup • Simulate • Analyze Sticker–Spacer Polymers

CASPULE, (C)ondensate (A)nalysis of (S)ticker Spacer (P)olymers (U)sing the (L)AMMPS (E)ngine, is a pipeline for Langevin Dynamics simulations of coarse-grained biopolymers. It automates system setup, LAMMPS simulation, and analysis of sticker–spacer polymer phase behavior. It provides an end-to-end reproducible computational protocol to simulate and analyze biological condensates.

Overview

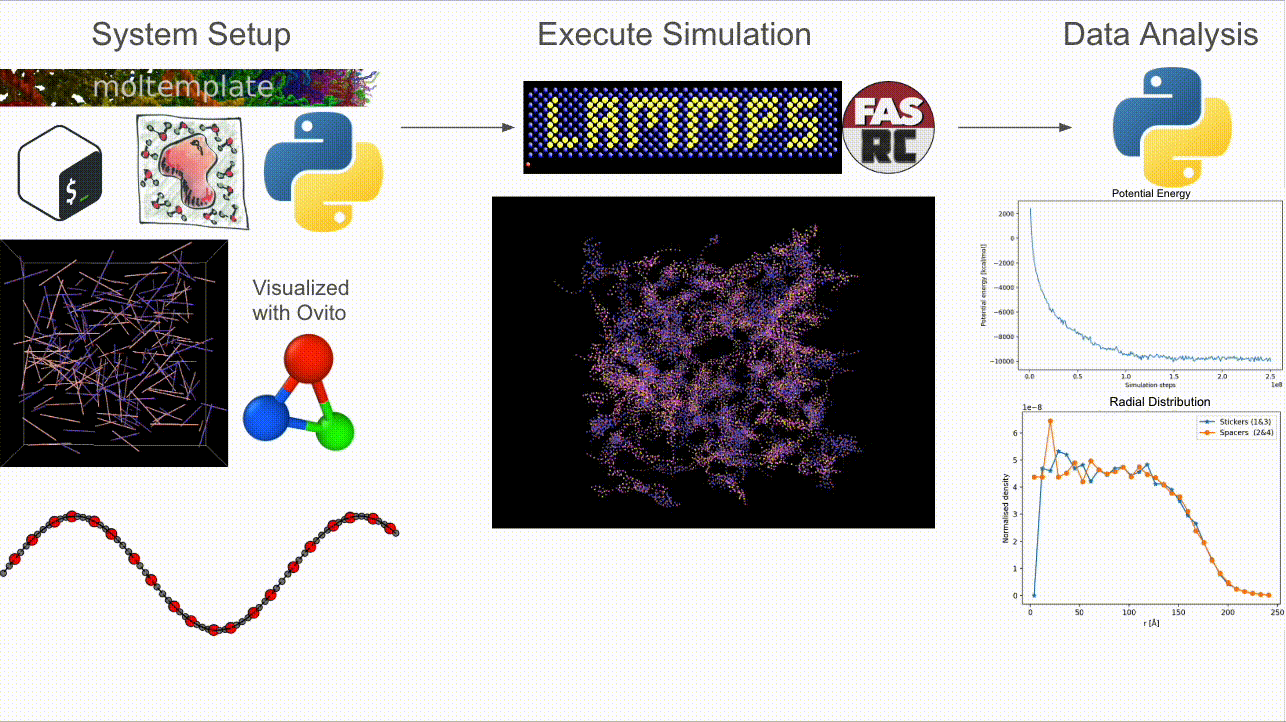

CASPULE is a three-stage pipeline for simulations of sticker–spacer polymers:

• Step 1 — Setup: Build arbitrary lengths and patterns; generate Packmol + Moltemplate inputs and a LAMMPS-ready *.data (initial condition).

• Step 2 — Simulate: Run Langevin dynamics (with optional metadynamics via Colvars) in LAMMPS; supports MPI + load balancing.

• Step 3 — Analyze: Turn trajectories/restarts into cluster statistics, bonded-sticker fractions, radial profiles, and energy timecourses.

Why CASPULE?

• Arbitrary patterns & lengths: Repeatable block templates let you sweep architectures systematically.

• Saturating interaction: Single-valent sticker interaction (to mimic saturable biomolecular interactions) and tunable E_s vs E_ns.

• Batteries-included analysis: Reproducible Python tools for kinetics and steady-state structure.

Quick Start (End-to-End)

Prerequisites

Ensure these are on $PATH (or module-loaded):

• packmol

• moltemplate

• LAMMPS with fix bond/create/random, bond/break, Colvars (for metadynamics), MPI build recommended

• Python 3 with the packages listed in Installation

Step 1 — Setup (build data + inputs)

Run the setup wrapper; it orchestrates all sub-steps.

bash create_InitCoor.sh

Behind the scenes, CASPULE executes:

1. python3 LT_writer.py            <n>  <seg_pattern> (make block templates)

2. python3 writePackmolInput.py    <n>  <NA> <NB> <L>  populate_tmp.inp  IC_tmp.xyz

3. python3 writeSysLT.py           <n>  <NA> <NB> <L>  b70_N200_L<L>.lt

4. packmol < populate_tmp.inp

5. moltemplate.sh -xyz IC_tmp.xyz b70_N200_L<L>.lt -nocheck

6. python3 updateColVar.py         IC_tmp.xyz  N200_Rg_L<L>.colvars  <L> <n> <NA> <NB> <seg_pattern>

7. python3 updateInput.py          Template_input.in  <L>

8. python3 fix_datafiles.py        b70_N200_L<L>.data

Artifacts produced:

IC_tmp.xyz
polyA_n<n>.lt, polyB_n<n>.lt
b70_N200_L<L>.lt
b70_N200_L<L>.data
b70_N200_L<L>.in
N200_Rg_L<L>.colvars
submit_b70_N200_L<L>.sh

Step 2 — Simulate (Langevin ± Metadynamics)

Vanilla Langevin:

mpirun -np 40 lmp -in b70_N200_L<L>.in

Notes

Specific interaction Single-valent stickers via fix bond/create/random + bond/break, with shifted-harmonic bonds (well depth E_s).

Non-specific interaction LJ (pair_style lj/cut) with well depth E_ns; LJ interactions between bonded beads are excluded (special_bonds lj 0 1 1 angle yes).

Typical parameter choices - r0 = 1.122 σ with σ = 10 Å - r_cut = r0 + 1.5 Å - T = 310 K - timestep 20–30 fs - tdamp ≈ 500 fs

Parallel scaling rule of thumb ~500 beads / CPU; enable simulation load balancing for spatially heterogenous systems (comm_style tiled + fix balance).

Metadynamics (optional): supply Colvars (e.g., N200_Rg_L<L>.colvars) to accelerate process of interest (clustering, coalescence etc.) along user defined collective variables (Rg, Inter-cluster distance etc.).

Step 3 — Analyze (one-command reports)

Use the analysis scripts in Data-Analysis Helpers to compute:

• Cluster size distributions (graph-based from *.restart)

• Bonded-sticker fraction vs time

• Radial density profiles (stickers vs spacers)

• Potential energy timecourses (convergence diagnostics)

Example:

python3 analysis/cluster_size_distribution.py   /path/to/sim_folder
python3 analysis/bonded_sticker_fraction.py     /path/to/Thermo_*.dat
python3 analysis/radial_profiles.py             /path/to/restarts

Get Started / Learn More

Contents:

• Installation
  • Install Packmol & Moltemplate
  • Python environment (analysis tools)
  • Harvard cluster: prerequisites
  • Configure & build (Harvard cluster)
  • Sanity check
  • macOS: prerequisites
  • Configure & build (macOS)
  • Troubleshooting
• Model Overview
  • Polymer Force-Fields
  • Specific (Sticker–Sticker) Interactions
  • Nonspecific (All-Bead) Interactions
  • Energy Units & Reporting
  • Quick Reference Tables
• Pipeline Overview
• Example System Setup
  • Generating Initial Condition
  • Inspecting “b70_N200_L500.data”
  • Inspecting “N200_Rg_L500.colvars”
  • Inspecting “b70_N200_L500.in”
• Simulation Output
  • Thermodynamic Data: Thermo_<fName>.dat
  • Bond-Formation/Breaking Data: BondData_<fName>.dat
  • Collective-Variable Trajectory: <fName>.colvars.traj
  • LAMMPS Dump Trajectory: traj_<fName>.dump
  • Colvars Metadynamics Hills: <fName>.colvars.meta-radgy.hills.traj
  • Potential of Mean Force (PMF): <fName>.pmf
  • Restart Files
  • LAMMPS Log File: <fName>.log
  • Summary of All Simulation Outputs
• Data-Analysis Helpers
  • Potential-Energy Trace
  • Bonded-Sticker Fraction (BSF) – time series
  • Cluster Size vs Bound-Sticker Fraction (scatter)
  • Sticker Dissociation Events
  • Cluster-Size Distribution
  • Radial Sticker / Spacer Density
  • Chain-Neighbour Histogram
  • Sticker-Bond Multiplicity per Chain Pair
  • Inter-molecular Sticker‑Sticker Distances
• API Reference
  • Core pipeline utilities
  • Analysis helpers

Contributing & Issues

Please open issues or PRs on the repository. Include your LAMMPS version/tag and whether Colvars + bond/create/random are enabled.
